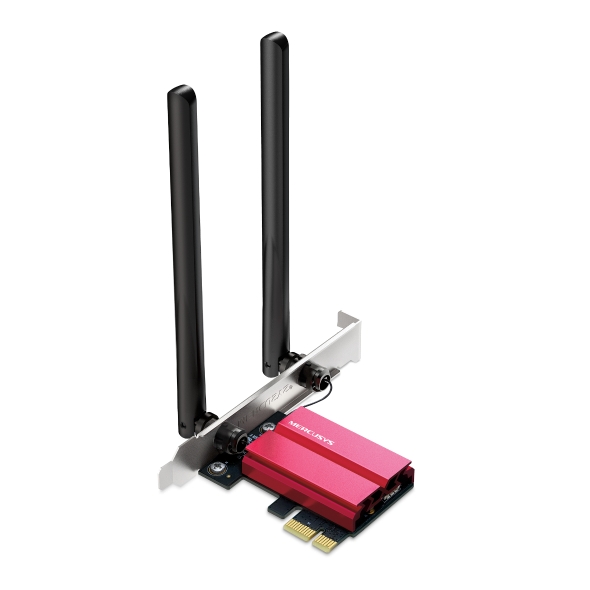

Mercusys MA86XE
AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Functions
Unstoppable Tri-Band Speed
*Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard
*Expand to the clearer, broader 6 GHz band
Wider Signal Coverage
*Two high-performance antennas
Bluetooth 5.3
*The latest Bluetooth technology achieves faster speeds and broader coverage
Improved Security
*The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Backward Compatibility
*Full support for 802.11ax/ac/a/b/g/n standards
Windows Compatible
*Supported operating system: Windows 10, 11 (64 bit), and currently 6 GHz Band only supported on Windows 11.
Specifications
Wireless
Wireless Standards
*IEEE 802.11 a/n/ac/ax 5 GHz
*IEEE 802.11 b/g/n/ax 2.4 GHz
WiFi Speeds
*2402 Mbps on 6 GHz
*2402 Mbps on 5 GHz
*574 Mbps on 2.4 GHz
Reception Sensitivity
6 GHz:
*11ax HE160 MCS0:-86 dBm
*11ax HE160 MCS11:-56 dBm
5 GHz:
*11ax HE80 MCS0: -90 dBm
*11ax HE80 MCS11: -59 dBm
*11a 54Mbps: -77 dBm
*11ac VHT80 MCS0: -92dBm
*11ac VHT80 MCS9: -64dBm
2.4 GHz:
*11ax HE40 MCS0: -91 dBm
*11ax HE40 MCS11: -60 dBm
*11g 54Mbps: -76 dBm
*11n HT40 MCS7: -72dBm
Wireless Security
*WPA-PSK/WPA2-PSK/WPA3-SAE
Hardware
Dimensions
*930 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm)
Antenna Type
*2× Fixed High-Performance Omni-Directional Antennas
