OVERVIEW

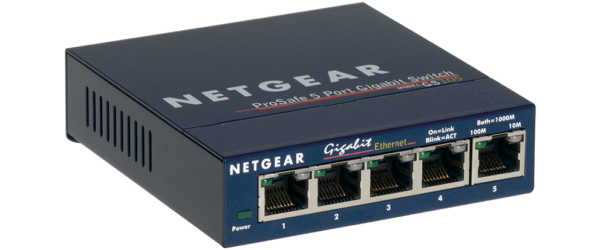

The NETGEAR ProSAFE® Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop and rackmount form factors and 5 to 24 port configurations. The GS108P supports PoE for low-cost PoE solution. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
NETGEAR Warranty
*This product is backed by a NETGEAR ProSAFE® Lifetime Hardware Warranty. Click here ( ) for coverage, availability and terms and conditions.
*Lifetime Next Business Day Hardware Replacement. Click here ( ) for coverage, availability and terms and conditions.
*ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
*ProSUPPORT Lifetime 24×7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
TECH SPECS
Product Number
*GS105
Speed
*10/100/1000Mbps Gigibit Ethernet
Number of Ports
*5
PoE ports
*n/a
Total PoE Budget
*n/a
Loop Detection
*n/a
Short cable power saving
*n/a
Energy Efficient Ethernet Support (IEEE802.3az)
*Yes
Jumbo Frame Support
*Yes
Queue WRR Ratio
*1:2:4:8
MAC Table Size
*4K
Packet buffer size
*128KB
IEEE 802.1p QoS
*n/a
Dimensions (WxDxH) @mm
*99x102x27
Weight (kg)
*0.264
Max Power Consumption
*3.67W
Max Operating Temperature
*50C
MTBF (hours)
*8,815,772
FCC Class
*B
WEBSITE
*Technical specification: http://www.netgear.com/business/products/switches/unmanaged/GS105.aspx#tab-techspecs
